Catalogue
Product catalogue
The 35-model catalogue with boundary dimensions, options and contact details. A4, print-ready.
Resources
Documents for purchasing, engineering and compliance.
Everything here can be forwarded internally or attached to a supplier file.
Compliance
SGS RoHS test report
Report SHAEC1610052101, dated 17 May 2016, issued under our former legal name. It is a test report covering substance limits of tested samples, not a certificate.
Dimensions
Dimension chart
All 35 models on one page: d × D × B, series, closure options and approximate mass.
Packing
Packing references

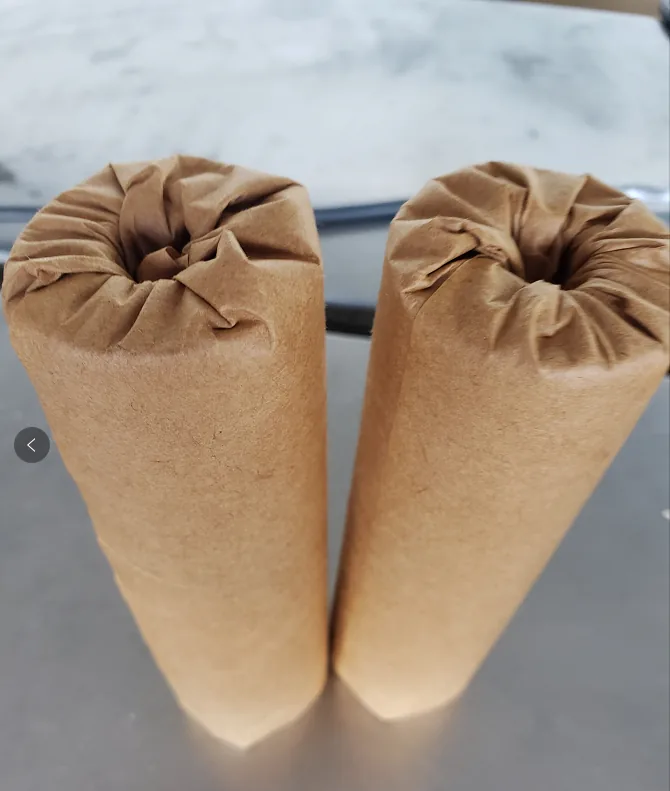

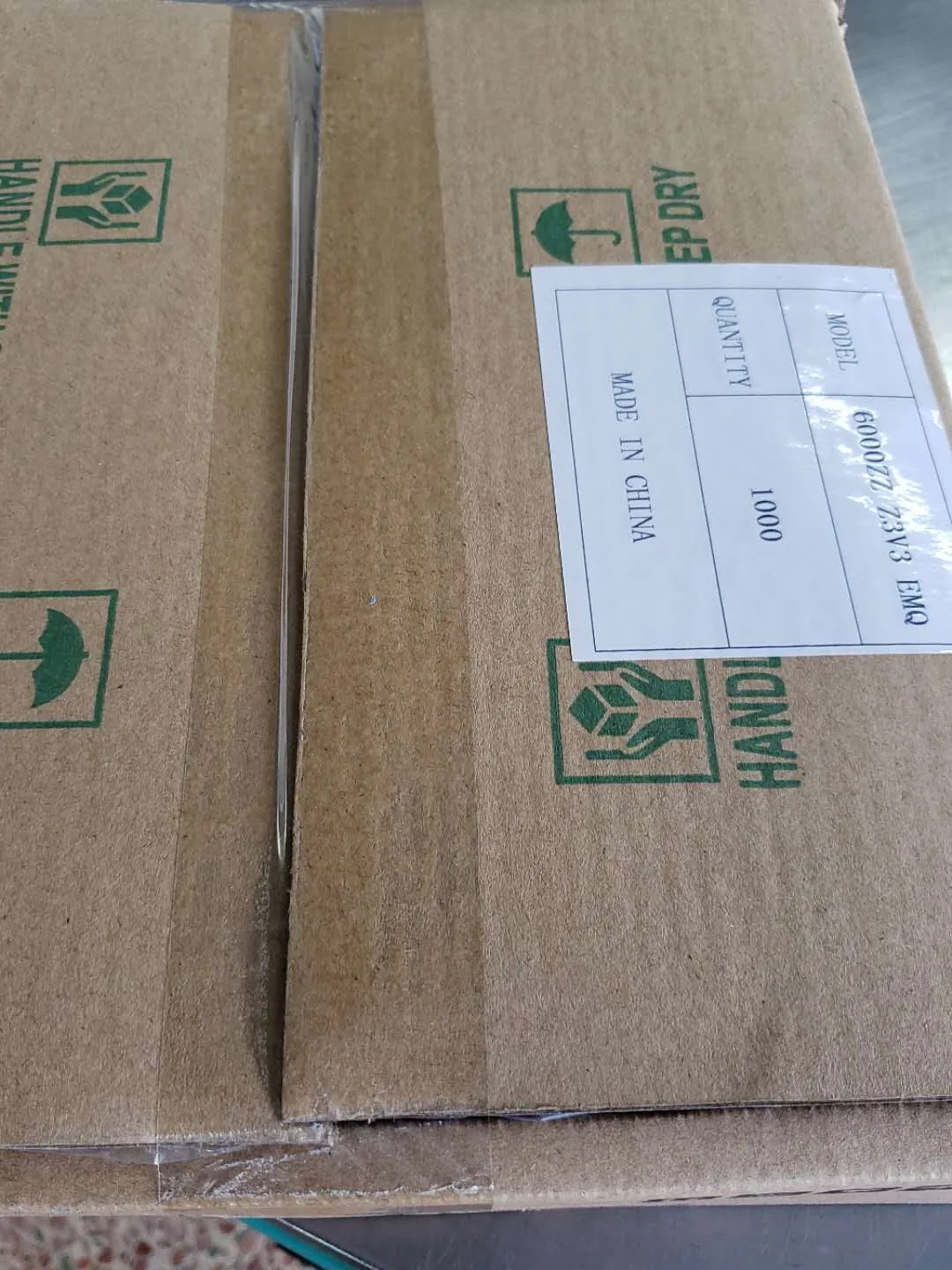

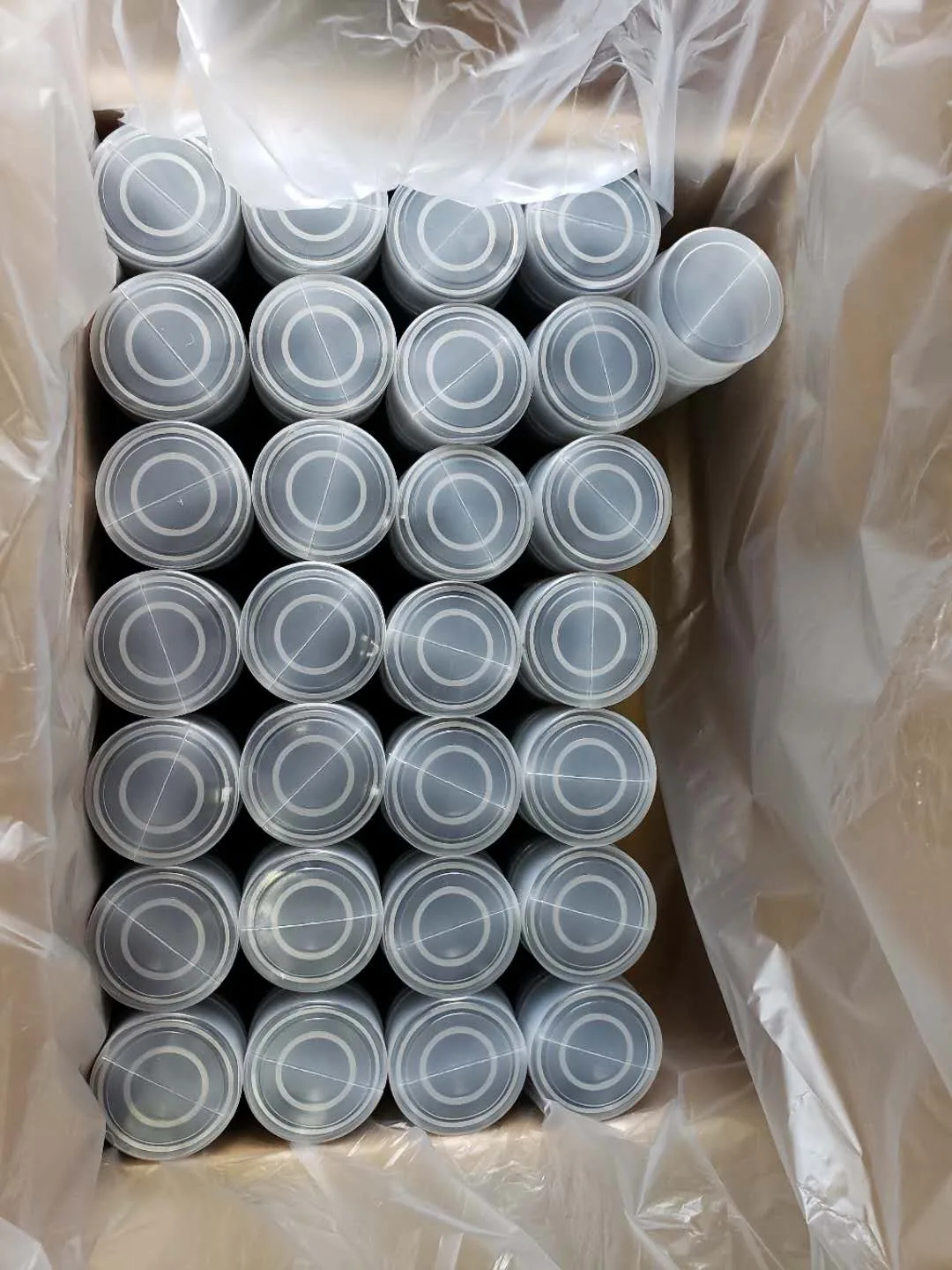

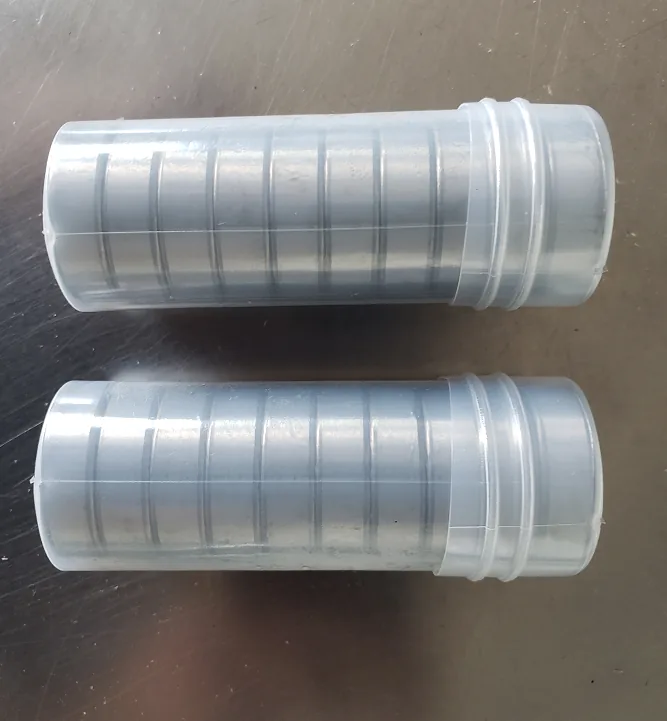

Plastic tube, VCI anti-rust paper, single box and export carton — the standard packing options.
Packing
Packing references
Plastic tube, VCI anti-rust paper, single box and export carton — the standard packing options.
Custom drawings
Drawings and samples
For custom bores, chamfers or markings, send a 2D drawing (PDF) or 3D file (STEP / IGES). We will confirm feasibility and tooling.
- 2D PDF drawing with dimensions and tolerances
- STEP / IGES / STP for 3D geometry
- Material, grease, marking and packing requirements
Compliance
Compliance documents
ISO 9001, CE, SASO and PVOC declarations are available on request. Certificate copies are supplied with export orders.
SGS RoHS test report SHAEC1610052101 was issued in 2016 under our former legal name, Cixi Chuangwei Bearing Co., Ltd. It is a test report, not a certificate.
FAQ
Questions before ordering?
MOQ, samples, payment terms and lead times are covered in the FAQ.
Tell us the model, the quantity and the application.
Send a drawing or a sample request and we will confirm dimensions, lead time and price. Photos and drawings can be uploaded with the inquiry.
